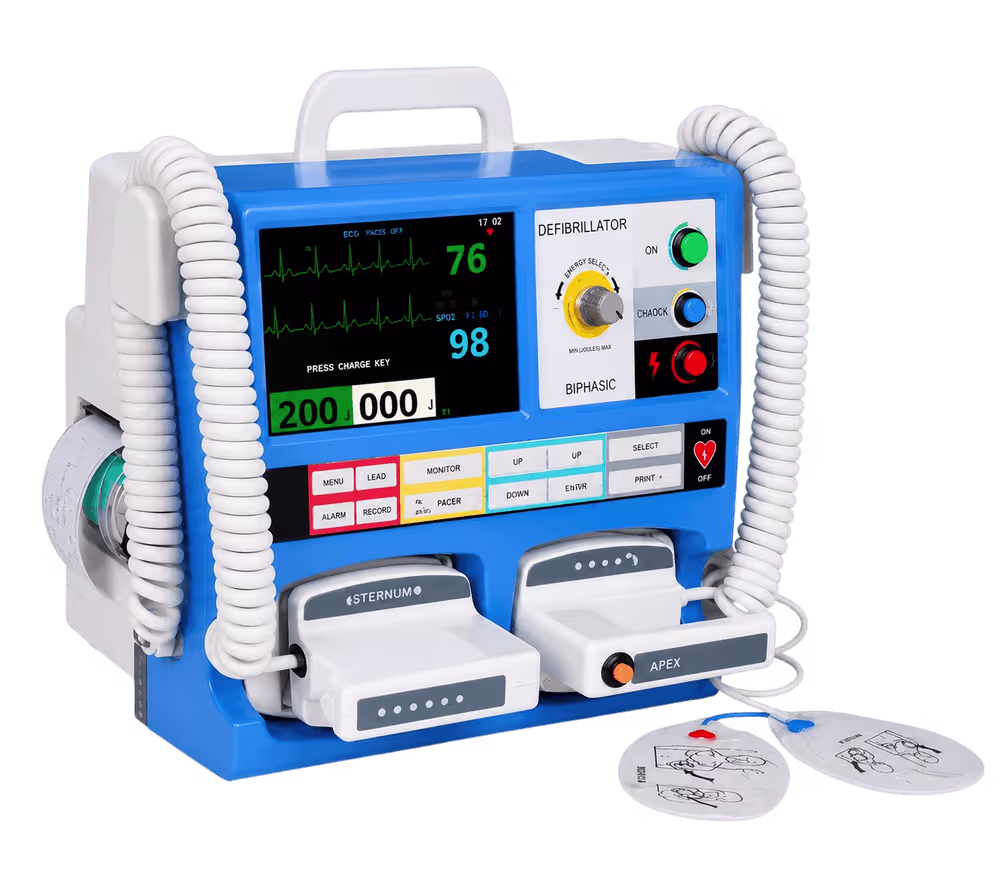

BI-PHASIC DEFIBRILLATOR

Sub Categories : Hospital Equipment

• KM-2008 Optional : SPO2, NIBP & Printer
• KM-2009 Optional: AED, SPO2, NIBP, Pacemaker, 300 J
• Masimo SPO2, 12 LED ECG + ETCO2
• Operating Mode : Manual, Display: 7 inch Colour TFT
• Waveform: Biphasic Truncated Exponential
• Energy: 2 to 200 joules in 12 steps selection
• Energy display : Displays selected and charged/delivered energy Synchronous Cardio Version
• Energy delivery begins within 60 ms of the QRS Peak
• Charging Time: 6 seconds on Mains
• Paddle Assembly: External paddle assembly with coil retractable high voltage cable. Adults & Pediatric paddle integrated to same handle
• Check Mode: Manual check mode
• Patient Impedance range : 35 ohm to 250 ohm
• Shock Delivery: Through paddles or pads
• Battery: 12 V 4.5Ah, Rechargeable, (Sealed Lead Acid)
• Back-up time: 3 hours min. 70~100 shock of 150 Joules.
• Display area : 150 mm × 90 mm
• Dimensions : H280 × W330 × D220 mm (Max) without paddles
• Weight: Approx. 6 Kgs.
• Printer Size : 50 × 20
• 360 Joules Optional.
